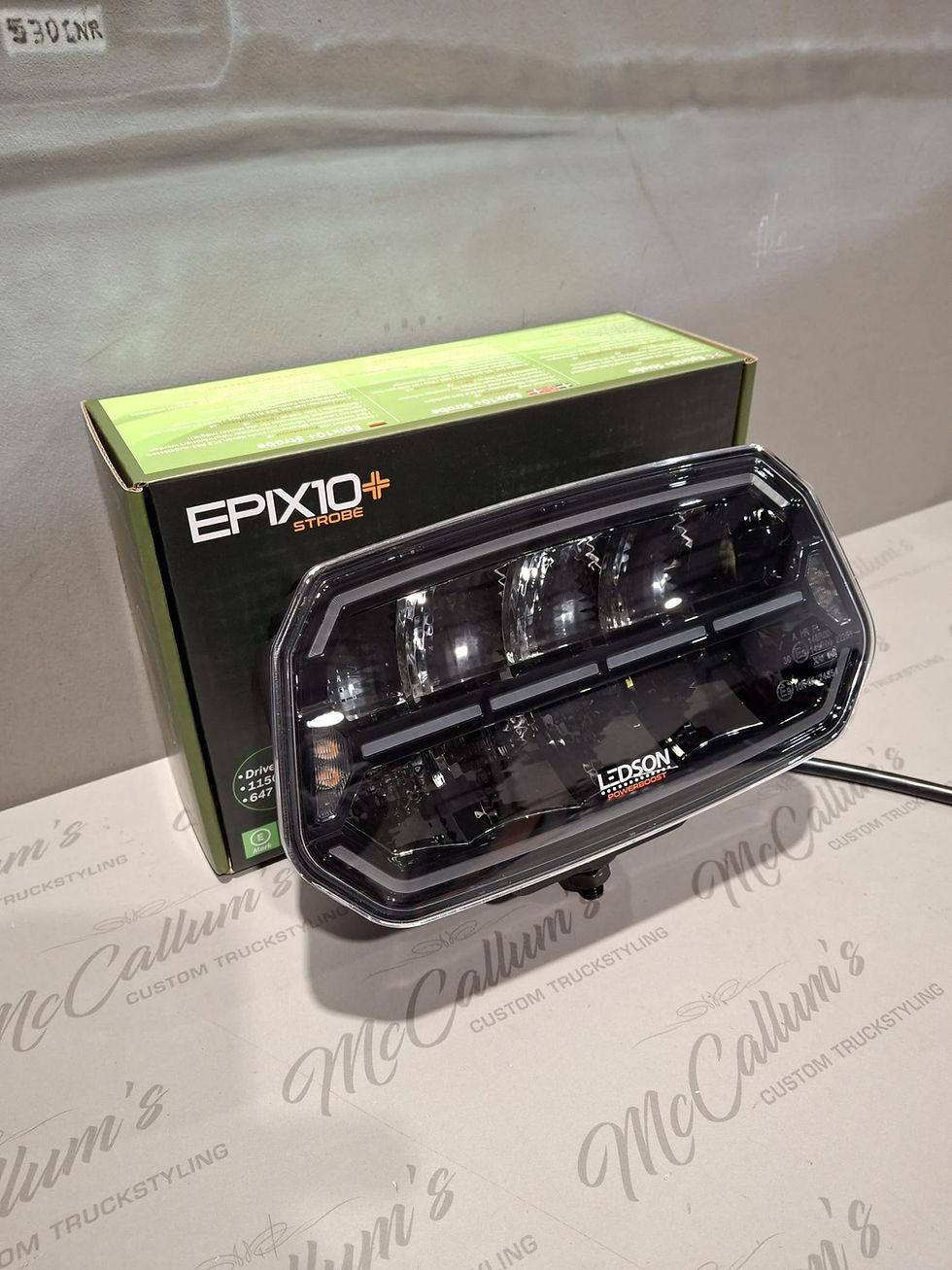

Ledson Epix 10+
Own-developed Swedish design
Epix10+ from Ledson is an innovative series of additional lights that elevate your vehicle to the next level. With a Swedish design language (in-house developed by Ledson) and outstanding performance, these additional lights give your vehicle a particularly unique and exclusive appearance that is guaranteed to attract attention! Experience outstanding brightness and design in a perfect balance.
Dynamic position light
Epix10+ lights the position light dynamically with an effective movement that leads the light nicely from one side of the auxiliary light to the other before it lights up completely. This effect gives you and your vehicle a distinct and unique character
Pulse-controlled Powerboost - It doesn't get smoother
Epix10 comes equipped with Ledson Powerboost – an extra power mode for those moments when you need (or just want) maximum brightness. A simple maneuver with the high beam lever activates this impressive brightness, so that you can easily adjust the amount of light of the auxiliary light as needed. With the new generation Powerboost from Ledson, you can change the mode very easily with the light horn (flashing with the high beam lever)   NOTE: your auxiliary light is delivered in E-approved mode, follow the instructions to activate Powerboost mode.

Pictures for your attention. Epix 10+ does not include the strobe function.


Ledson Epix 10+

£205.00Price
Excluding VAT
Once order is made we will contact you with estimated shipping date.
    • Selectable position light with dynamic lighting (yellow-orange or xenon white, plug in the color you want)
    • Range E-approved mode: 359 m (1 lux)
    • Range Powerboost mode: 647 m (1 lux)
    • Driving beam light image (enhances the vehicle's regular high beam image)
    • E-marked ECE R112 (Ref. 30), R7 (white position light)
    • EMC-protected ECE R10 (do not interfere with the radio)
    • 11500 lumens (theoretical), 8200 lumens (actual)
    • Neutral white light (5000K)
    • ETM (Electronic Thermal Management) - adjusts the strength of the diodes depending on how hot they are for optimal lifespan
    • Side reflective optical system
    • Pressure equalization membrane
    • Aluminum cooling flange
    • Adjustable bracket in stainless steel
    • Polycarbonate lens
    • 36 month warranty



    Technical data:

    • 150W (10 x 15W Cree LED)
    • IP69K (water/dustproof)
    • Cable with 4-pin DT connector
    • Voltage 9-36 V
    • Load E-approved mode: 2.2A @ 12V and 1.1A @ 24V (high beam only, without position light)
    • Load high beam Powerboost mode: 10.6A @ 12V and 4.8A @ ​​24V (high beam only, without position light)



    Dimensions & weight:

    • Width: 247 mm
    • Height: 145 mm (incl. bracket)
    • Depth: 86 mm
    • Weight: 1.6 kg



    Included:

    • One Ledson Epix10+ LED additional light 10"
    • Bracket, bolts and screws to attach the auxiliary light with either one or two attachment points
    • DT connector (4-pin) complete with  Ledson Connect



    Installation instructions for cables  (detailed installation instructions included):

    • Red: Extra light (+)
    • Black: Additional light / Position light (- earth)
    • White: Position light (+) white light
    • Yellow: Position light (+) yellow-orange light

    NOTE: The DT connector must not be cut as this means an increased risk of moisture damage and the warranty then ceases to apply.
